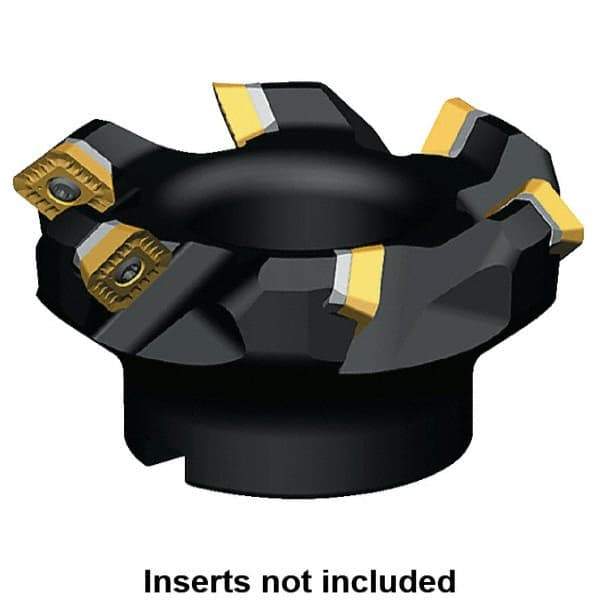

Kennametal - 173.64mm Cut Diam, 40mm Arbor Hole, 6.61mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, SECW 1404... Insert, 10 Flutes, Series KSSM
Item #: 58497769
Brand: Kennametal
Model #: 1926908
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 173.64 |
| Cutting Diameter (Decimal Inch) | 6.8362 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SECW 1404... |
| Series | KSSM |
| Maximum Depth of Cut (mm) | 6.61 |
| Maximum Depth of Cut (Decimal Inch) | 0.2602 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | KSSM |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.9370 |
| Hub Diameter (mm) | 100.00 |
| Maximum Body Diameter (Decimal Inch) | 6.7472 |
| Maximum RPM | 12500 |
| Pitch | Medium |
| Complete Insert Compatibility | SECW 1404AEENLN |
