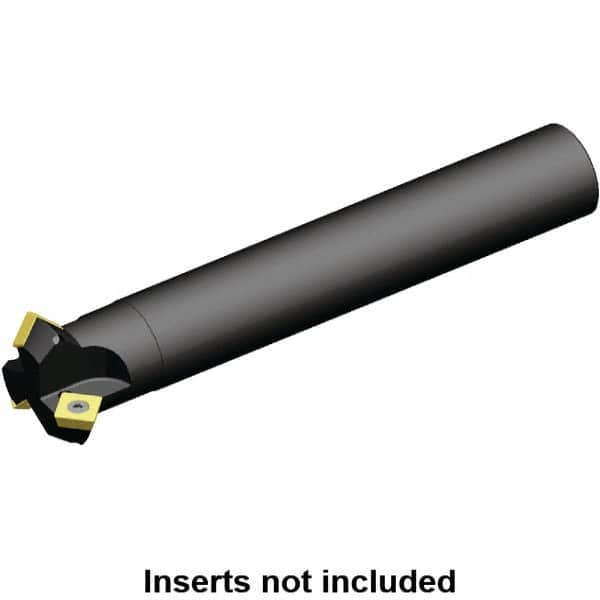

Kennametal - 45° Lead Angle, 32.16mm Max Cut Diam, 20mm Min Cut Diam, 5.85mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SDCW 090308 Insert Style, 83mm Overall Length, Straight Shank
Item #: 58494584
Brand: Kennametal
Model #: 3668055
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.7874 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 32.16 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2660 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | 45 |
| Overall Length (mm) | 83.00 |
| Overall Length (Decimal Inch) | 3.2677 |
| Insert Style | SDCW 090308 |
| Maximum Depth of Cut (Decimal Inch) | 0.2303 |
| Maximum Depth of Cut (mm) | 5.85 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2600 |
| Weldon Flat | No |
| Shank Length (mm) | 51.00 |
| Shank Length (Decimal Inch) | 2.0079 |
