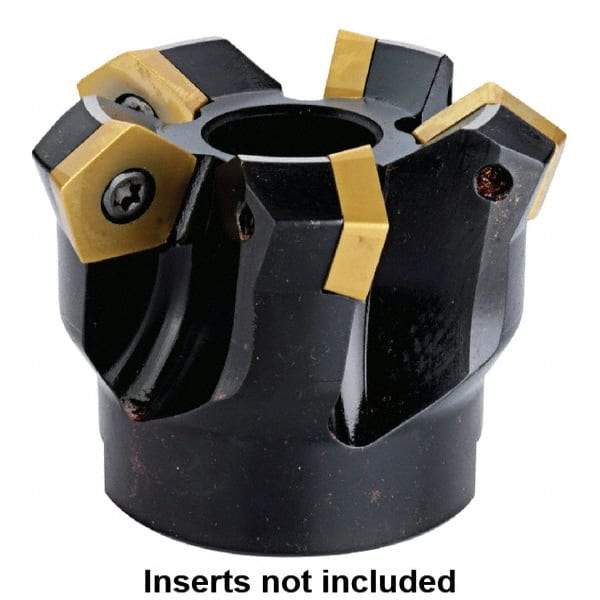

Kennametal - 160mm Cut Diam, 40mm Arbor Hole, 5.5mm Max Depth of Cut, 54° Indexable Chamfer & Angle Face Mill - 10 Inserts, PD.X 1204... Insert, 10 Flutes, Series KMS
Item #: 58489683
Brand: Kennametal
Model #: 1951722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 54 |
| Overall Height (Decimal Inch) | 2.1654 |
| Overall Height (mm) | 55.00 |
| Insert Compatibility | PD.X 1204... |
| Series | KMS |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | KMS |
| Number of Flutes | 10 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Hub Diameter (mm) | 90.00 |
| Maximum Body Diameter (Decimal Inch) | 5.9450 |
| Complete Insert Compatibility | PD.X 1204...SNGN |
