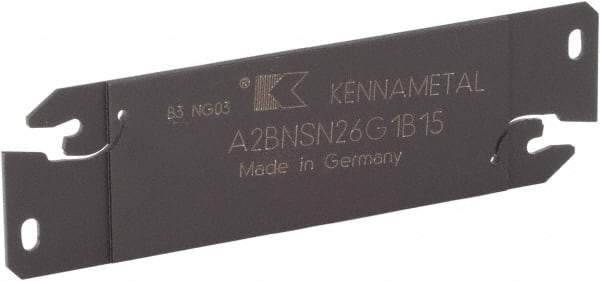

Kennametal - 1.2598" Blade Height, 0.0945" Blade Width, 5.9154" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 15mm Max Depth of Cut, A2BNSN Blade, A2 Cut-Off Series
Item #: 58484460
Brand: Kennametal
Model #: 3749168
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 150.25 |
| Blade Overall Length (Decimal Inch) | 5.9154 |
| Blade Style | A2BNSN |
| Insert Style | A2 014... |
| Insert Width (mm) | 1.40 |
| Insert Width (Decimal Inch) | 0.0551 |
| Series | A2 Cut-Off |
| Insert Seat Size | 1B |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Height (mm) | 25.05 |
| Cutting Height (Decimal Inch) | 0.9862 |
| Minimum Insert Width (Decimal Inch) | 0.0550 |
| Complete Insert Compatibility | A2014N00CM01 |
