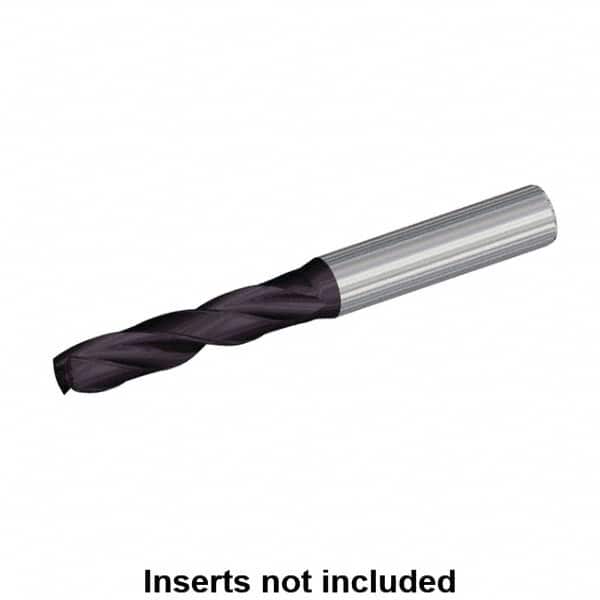

Kennametal - 6.1mm, 132° Point, Spiral Flute, Solid Carbide Taper Length Drill Bit - Multilayer TiAlN Finish, 67mm Flute Length, 105mm OAL, Series B978A
Item #: 58476714
Brand: Kennametal
Model #: 2261701
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.10 |
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Drill Point Angle | 132 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 2.6378 |
| Flute Length (mm) | 67.00 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1339 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 57.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.2441 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.27 |
| Drill Point Length (Decimal Inch) | 0.0500 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.006 to +0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0008 |
| Specification Number | DIN 6537K |
| Material Grade | KC7315 |
| Series/List | B978A |
