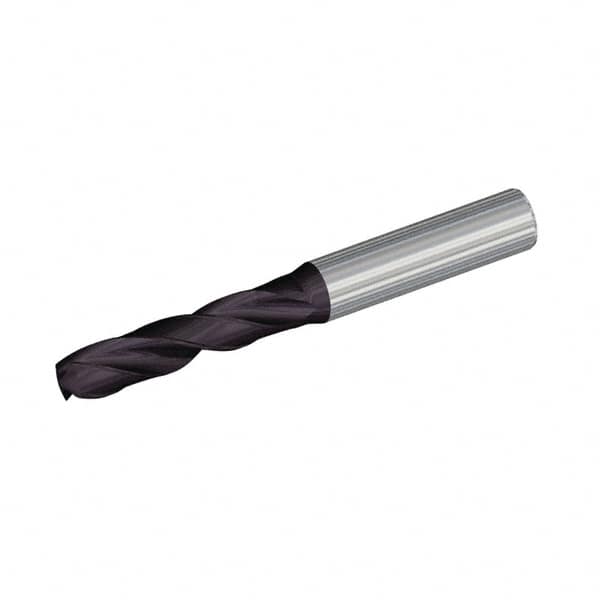

Kennametal - 14.2mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - Multilayer TiAlN Finish, Right Hand Cut, 65mm Flute Length, 115mm OAL, Standard Point, Straight Shank
Item #: 58476276
Brand: Kennametal
Model #: 2425233
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5591 |
| Drill Bit Size (mm) | 14.20 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 45.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.7717 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 2.45 |
| Drill Point Length (Decimal Inch) | 0.0964 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0003 to +0.0010 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 6535 |
| Series/List | B966A |
| Length Type | Stub |
