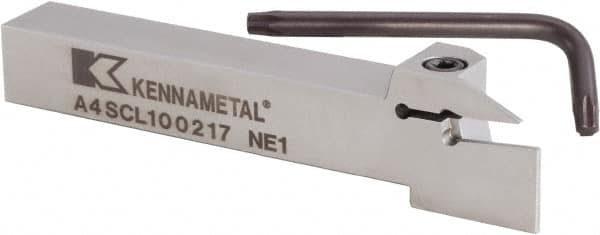

Kennametal - A4SC, Left Hand Cut, 27mm Max Workpc Diam, A4 G0150.. Insert, Indexable Cutoff Toolholder - 13.5mm Max Depth of Cut, 20mm Shank Width, 20mm Shank Height, 125mm OAL
Item #: 58467408
Brand: Kennametal
Model #: 2982168
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 13.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5315 |
| Maximum Workpiece Diameter (mm) | 27.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0630 |
| Series | A4 |
| Toolholder Style | A4SC |
| Insert Compatibility | A4 G0150.. |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Insert Seat Size | 1 |
| Through Coolant | No |
| Minimum Insert Width (mm) | 1.50 |
| Minimum Insert Width (Decimal Inch) | 0.0591 |
| Insert Width (mm) | 1.50 |
| Insert Width (Decimal Inch) | 0.0591 |
| Back of Bar to Cutting Edge (mm) | 19.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7638 |
| Head Height (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 100.00 |
| Shank Length (Decimal Inch) | 3.9370 |
| Blade Width (mm) | 1.16 |
| Blade Width (Decimal Inch) | 0.0457 |
| Complete Insert Compatibility | A4G0150M01U01B |
