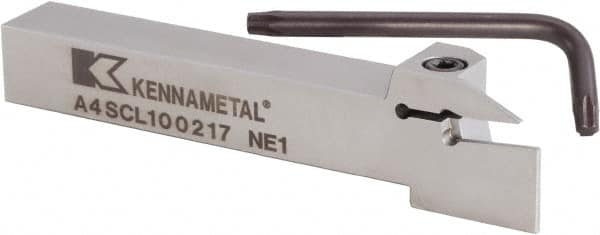

Kennametal - A4SC, Left Hand Cut, 34mm Max Workpc Diam, A4 G0200.. Insert, Indexable Cutoff Toolholder - 17.5mm Max Depth of Cut, 15.88mm Shank Width, 15.88mm Shank Height, 114.3mm OAL
Item #: 58467333
Brand: Kennametal
Model #: 4168861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Maximum Workpiece Diameter (mm) | 34.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3386 |
| Series | A4 |
| Toolholder Style | A4SC |
| Insert Compatibility | A4 G0200.. |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (mm) | 15.88 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Insert Seat Size | 2 |
| Through Coolant | No |
| Minimum Insert Width (mm) | 2.00 |
| Minimum Insert Width (Decimal Inch) | 0.0787 |
| Insert Width (mm) | 2.00 |
| Insert Width (Decimal Inch) | 0.0787 |
| Back of Bar to Cutting Edge (mm) | 14.97 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5893 |
| Head Height (mm) | 25.88 |
| Head Height (Decimal Inch) | 1.0189 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Shank Length (mm) | 83.30 |
| Shank Length (Decimal Inch) | 3.2795 |
| Height to Shank Top (mm) | 19.88 |
| Height to Shank Top (Decimal Inch) | 0.7825 |
| Complete Insert Compatibility | A4G0200M02P02B |
