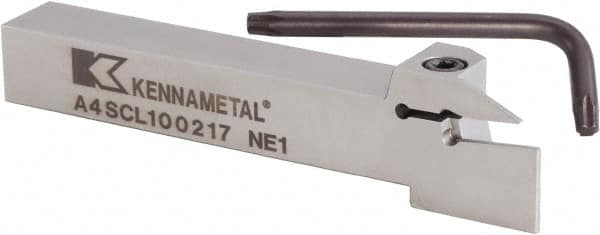

Kennametal - A4SC, Left Hand Cut, 34mm Max Workpc Diam, A4 G0300.. Insert, Indexable Cutoff Toolholder - 17mm Max Depth of Cut, 16mm Shank Width, 16mm Shank Height, 125mm OAL
Item #: 58467267
Brand: Kennametal
Model #: 4169752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Workpiece Diameter (mm) | 34.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3386 |
| Series | A4 |
| Toolholder Style | A4SC |
| Insert Compatibility | A4 G0300.. |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Insert Seat Size | 3 |
| Through Coolant | No |
| Minimum Insert Width (mm) | 3.00 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Back of Bar to Cutting Edge (mm) | 14.72 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5795 |
| Head Height (mm) | 27.00 |
| Head Height (Decimal Inch) | 1.0630 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Shank Length (mm) | 92.00 |
| Shank Length (Decimal Inch) | 3.6220 |
| Height to Shank Top (mm) | 20.00 |
| Height to Shank Top (Decimal Inch) | 0.7874 |
| Blade Width (mm) | 2.45 |
| Blade Width (Decimal Inch) | 0.0965 |
| Complete Insert Compatibility | A4G0300M03P02GMP |
