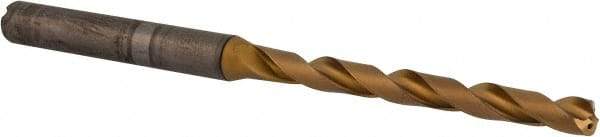

Kennametal - 4.5mm, 135° Point, Spiral Flute, Solid Carbide Taper Length Drill Bit - Multilayer TiCN Finish, 49mm Flute Length, 87mm OAL, Series B212A-HP
Item #: 58463324
Brand: Kennametal
Model #: 4101758
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Carbonitride (TiCN) is harder and more wear resistant than Titanium Nitride (TiN). It is used on a variety of materials including stainless steel, cast iron and aluminum alloy
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiCN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 1.9291 |
| Flute Length (mm) | 49.00 |
| Overall Length (mm) | 87.00 |
| Overall Length (Decimal Inch) | 3.4252 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 41.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.6142 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.85 |
| Drill Point Length (Decimal Inch) | 0.0333 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.004 to +0.016 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0006 |
| Specification Number | DIN 6537K |
| Material Grade | KCM15 |
| Series/List | B212A-HP |
