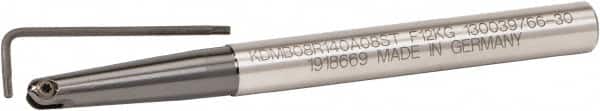

Kennametal - 12mm Cut Diam, 6mm Max Depth of Cut, 16mm Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 60mm Head Length, Straight Shank, KDMB Toolholder, KDMB 12.. Insert
Item #: 58460940
Brand: Kennametal
Model #: 1918671
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 12.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Neck Diameter (Decimal Inch) | 0.4134 |
| Maximum RPM | 40000 |
