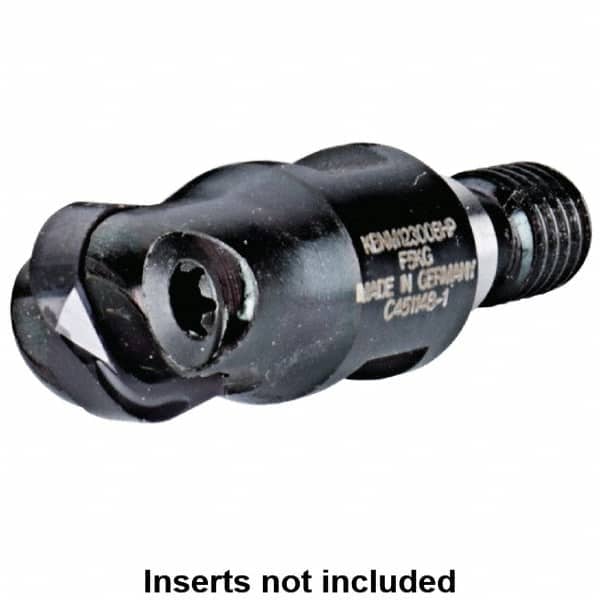

Kennametal - 16mm Cut Diam, 8mm Max Depth of Cut, 35mm OAL, Indexable Ball Nose End Mill - 35mm Head Length, M08 Modular Connection, KDMB Toolholder, KDMB 16.. Insert
Item #: 58456799
Brand: Kennametal
Model #: 1918652
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M08 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 16.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 35.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 2 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Maximum RPM | 40000 |
