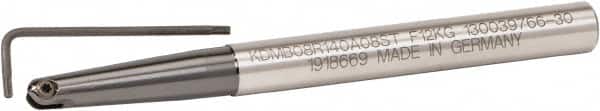

Kennametal - 10mm Cut Diam, 5mm Max Depth of Cut, 12mm Shank Diam, 150mm OAL, Indexable Ball Nose End Mill - 33.5mm Head Length, Straight Shank, KDMB Toolholder, KDMB 10.. Insert
Item #: 58456765
Brand: Kennametal
Model #: 1918670
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 10.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 33.50 |
| Head Length (Decimal Inch) | 1.3189 |
| Neck Diameter (Decimal Inch) | 0.3543 |
| Maximum RPM | 40000 |
