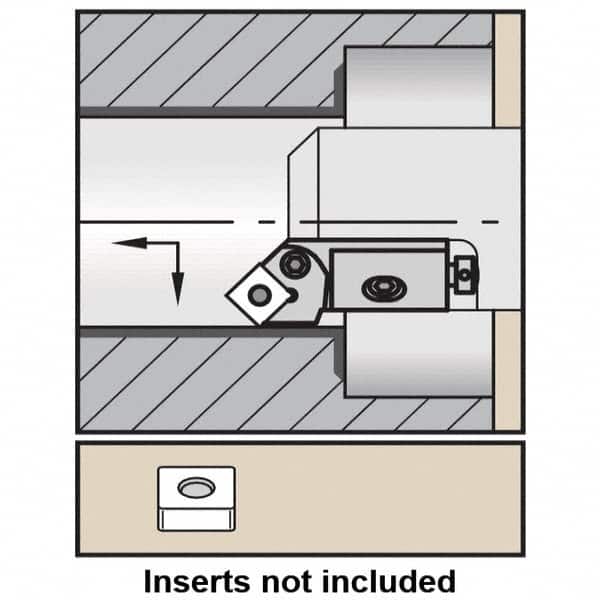

Kennametal - Series Kenlever, Left Hand, PSSN Toolholder Compatibility, SN.., TP.. Insert Compatibility, Indexable Turning Cartridge - Pin Lock Assembly Holding Method, 8.3mm Max Depth of Cut, 47mm OAL x 14mm OAW x 19.75mm OAH
Item #: 58451881
Brand: Kennametal
Model #: 1244452
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Kenlever |
| Cutting Direction | Left Hand |
| Toolholder Style Compatibility | PSSN |
| Insert Style Compatibility | SN..; TP.. |
| Insert Holding Method | Pin Lock Assembly |
| Overall Length (mm) | 47.00 |
| Overall Length (Decimal Inch) | 1.8504 |
| Overall Width (mm) | 14.00 |
| Overall Width (Decimal Inch) | 0.5512 |
| Overall Height (mm) | 19.75 |
| Overall Height (Decimal Inch) | 0.7776 |
| Maximum Depth of Cut (mm) | 8.30 |
| Complete Insert Compatibility | SN.. 120408; TP.. 110204 |
