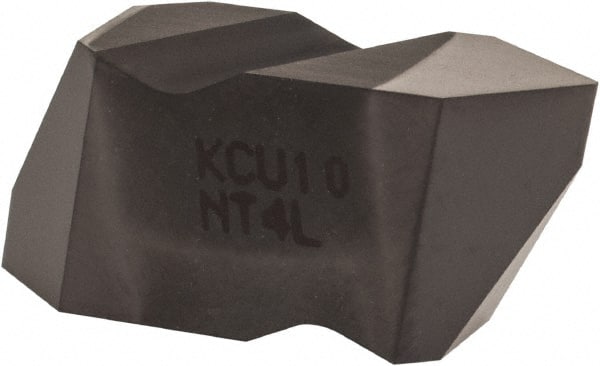

Kennametal - NT4L KCU10 Carbide Threading Insert
Item #: 58447301
Brand: Kennametal
Model #: 4176121
Product Specifications
| Insert Style | NT |
| Insert Size | 4 |
| Thread Type | Internal/External |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | KCU10 |
| Internal Pitch/TPI | 2.00-6.25 mm; 4-12 TPI |
| External Pitch/TPI | 1.25-6.25 mm; 4-20 TPI |
| Coating | AlTiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.17 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Thickness (mm) | 6.48 |
| Thickness (Decimal Inch) | 0.2550 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (Decimal Inch) | 0.1280 |
| Manufacturer Grade | KCU10 |
