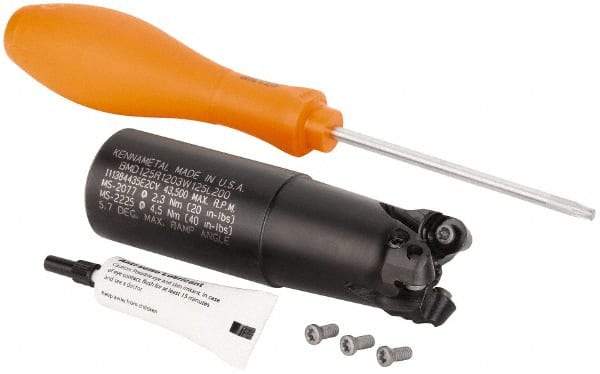

Kennametal - 1-1/2" Cutting Diam, 1-1/4" Shank Diam, 1-1/2" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RP.T 1605M0.. Insert, BMD Toolholder, Through Coolant
Item #: 58444407
Brand: Kennametal
Model #: 4043038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 3 |
| Insert Style | RP.T 1605M0.. |
| Toolholder Style | BMD |
| Series | KSRM |
| Overall Length (mm) | 108.71 |
| Overall Length (Decimal Inch) | 4.2800 |
| Insert Diameter (mm) | 16.00 |
| Insert Diameter (Decimal Inch) | 0.6300 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 22.10 |
| Head Length (mm) | 50.80 |
| Head Length (Inch) | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 57.91 |
| Shank Length (Decimal Inch) | 2.2800 |
| Maximum RPM | 28000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
