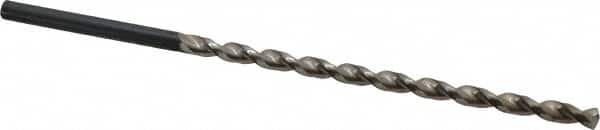

Guhring - 0.315" 130° 2-Flute Cobalt Extra Length Drill Bit
Item #: 85985950
Brand: Guhring
Model #: 9006180080000
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3150 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 9.4490 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Length (Decimal Inch) | 6.4960 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.022 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | 618 |
