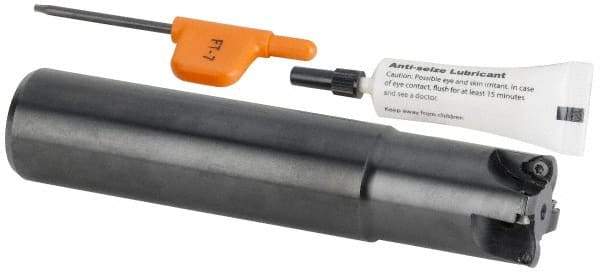

Kennametal - 25mm Cut Diam, 0.04" Max Depth, M12 Modular Connection Indexable High-Feed Helical End Mill - Screw Holding Method, WP..0302.. Insert, Through Coolant
Item #: 58442021
Brand: Kennametal
Model #: 4138429
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Number of Cutter Inserts | 4 |
| Insert Style | WP..0302.. |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6410 |
| Maximum RPM | 12700 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 1.3780 |
