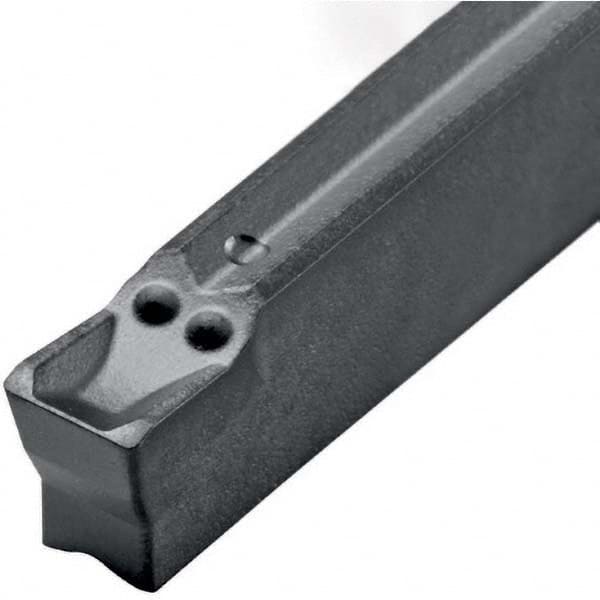

Arno - SA3535 M1 Grade AP5020, 4mm Cutting Width Carbide Grooving Insert
Item #: 39960802
Brand: Arno
Model #: 92076
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SA35 |
| Insert Size | 35 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 52.50 |
| Manufacturer's Grade | AP5020 |
| Coating | TiCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 7.50 |
| Number of Cutting Edges | 2 |
| Lead Angle | 0 |
| Insert Seat Size | 35 |
| Chipbreaker | M1 |
| ISO Range | (P15-P30), (M15-M20), (N10-N25), (S10-S25) |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.4064 |
| Corner Radius (Decimal Inch) | 0.016 |
| Coating Process | PVD |
| Overall Length (mm) | 35.00 |
| Manufacturers Catalog Number | SA35-4004N-M1 AP5020 |
| Cut Condition | Stable |
