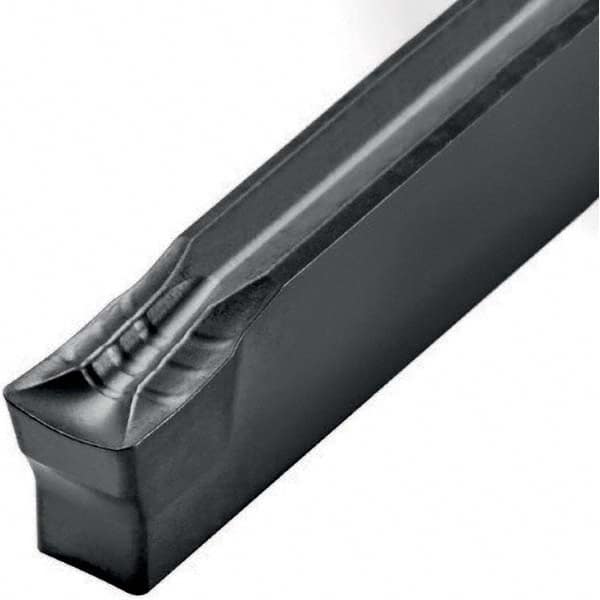

Arno - SA2424 T1 Grade AM5040, 3mm Cutting Width Carbide Grooving Insert
Item #: 10075232
Brand: Arno
Model #: 111146
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SA24 |
| Insert Size | 24 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 22.00 |
| Manufacturer's Grade | AM5040 |
| Coating | AlTiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.50 |
| Number of Cutting Edges | 2 |
| Lead Angle | 6 |
| Insert Seat Size | 24 |
| Chipbreaker | T1 |
| ISO Range | (P35 - P40), (M30 - M45) |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.3048 |
| Corner Radius (Decimal Inch) | 0.012 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Manufacturers Catalog Number | SA24-3003R-T1 AM5040 |
| Cut Condition | Stable |
