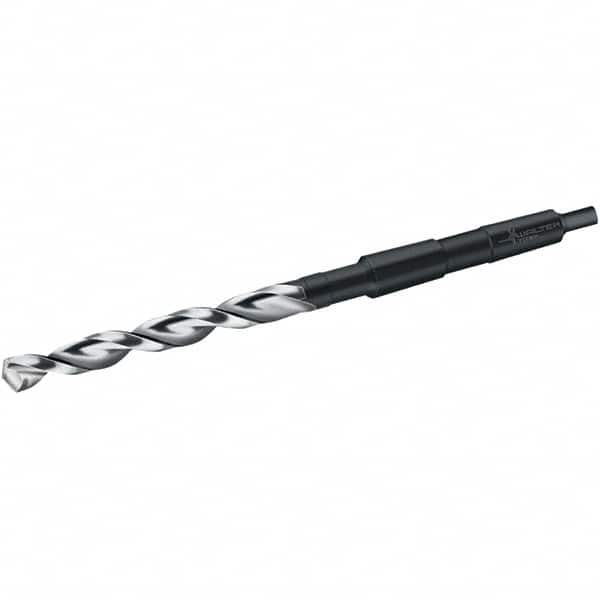

Walter-Titex - 40mm, 4MT 130° Point Cobalt Taper Shank Drill Bit
Item #: 36366680
Brand: Walter-Titex
Model #: 5065976
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 40.00 |
| Drill Bit Size (Decimal Inch) | 1.5748 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 4MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Overall Length (mm) | 349.00 |
| Flute Length (mm) | 200.00 |
| Flute Length (Decimal Inch) | 7.8740 |
| Maximum Drilling Depth (Decimal Inch) | 6.30 |
| Cutting Direction | Right Hand |
| Point Type | Alpha XE |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 228-B; DIN 345 |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M35 |
| Specification Designation | DIN |
| Series/List | A4247 |
