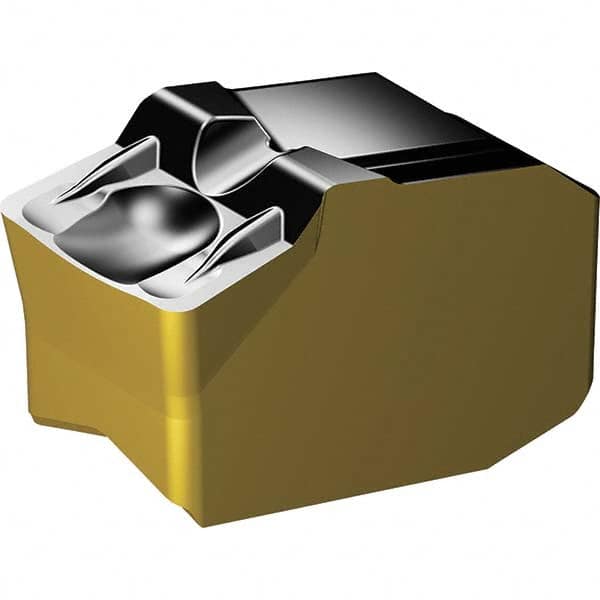

Sandvik Coromant - QD-NK GM Grade 4325, 6mm Cutting Width Carbide Grooving Insert
Item #: 38789657
Brand: Sandvik Coromant
Model #: 6976253
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | K |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 1.00 |
| Number of Cutting Edges | 1 |
| Relief Angle | 7 |
| Chipbreaker | GM |
| ISO Range | (K05-K15), (N10-N20), (S05-S15) |
| Corner Radius (mm) | 0.4 |
| Coating Process | CVD |
| Series | CoroMill QD |
| ISO Number | QD-NK-0600-0004-GM 4325 |
| Manufacturers Catalog Number | QD-NK-0600-0004-GM 4325 |
| Cut Condition | Stable |
