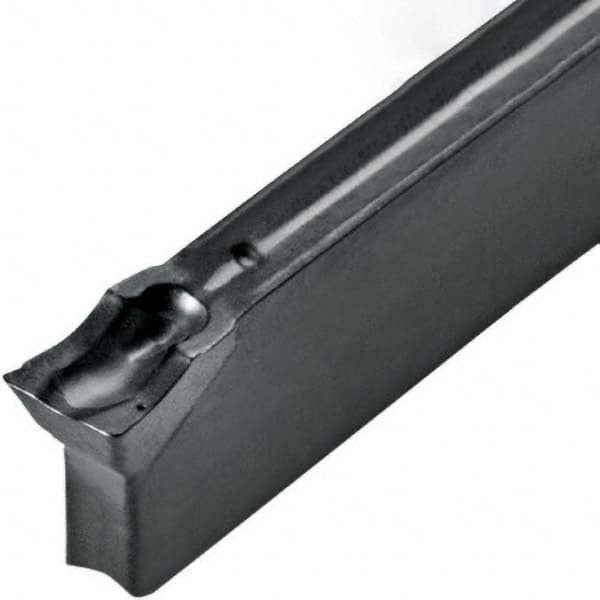

Arno - SA2424 S1 Grade AP5020, 2.5mm Cutting Width Carbide Grooving Insert
Item #: 10077311
Brand: Arno
Model #: 502347
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SA24 |
| Insert Size | 24 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Maximum Depth of Cut (mm) | 22.00 |
| Manufacturer's Grade | AP5020 |
| Coating | TiCN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.50 |
| Number of Cutting Edges | 2 |
| Lead Angle | 0 |
| Insert Seat Size | 24 |
| Chipbreaker | S1 |
| ISO Range | (P15-P30), (M15-M20), (N10-N25), (S10-S25) |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2032 |
| Corner Radius (Decimal Inch) | 0.008 |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Manufacturers Catalog Number | SA24-2502N-S1 AP5020 |
| Cut Condition | Stable |
