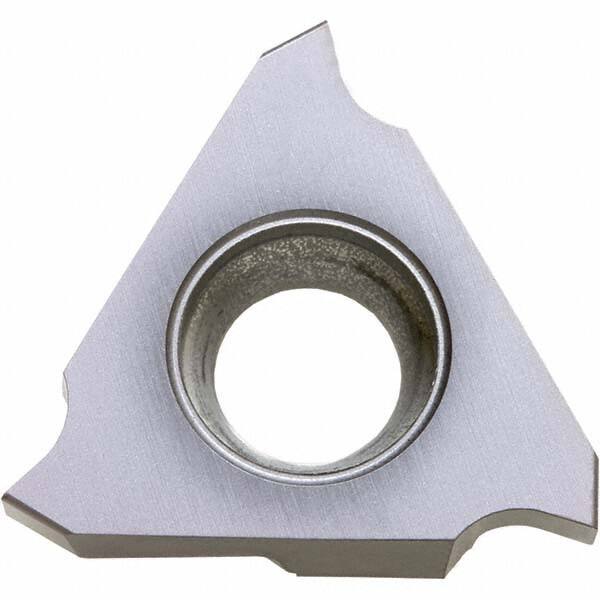

Kyocera - GBA43 R Grade PR1625, 1mm Cutting Width Carbide Grooving Insert
Item #: 10629848
Brand: Kyocera
Model #: 8860650
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Manufacturer's Grade | PR1625 |
| Coating | Megacoat Nano |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.76 |
| Chipbreaker | R |
| Multi-Use Application | External Grooving |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Series | GBA |
| Rake | Positive |
| ISO Number | GBA43L100-050R |
| Manufacturers Catalog Number | GBA43L100050R PR1625 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (mm) | 4.7600 |
| Insert Holding Method | Screw or Clamp |
