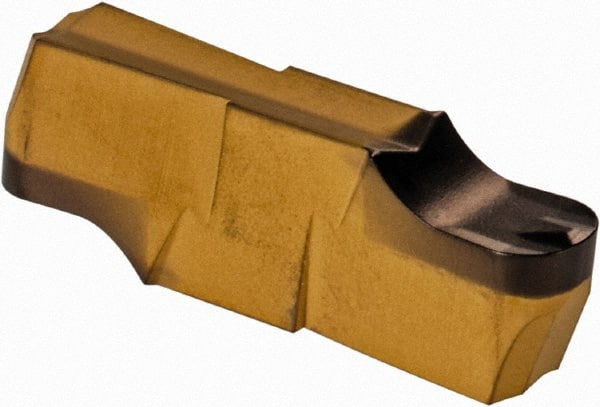

Iscar - GIPI318159 Grade IC8250 3.18mm Cutting Width Carbide Double End Grooving Insert
Item #: 00723320
Brand: Iscar
Model #: 6405225
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 318159 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 8 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Coating Process | CVD |
| Overall Length (mm) | 15.70 |
| Overall Length (Decimal Inch) | 0.6180 |
| Series | Cut Grip |
| ISO Number | GIPI 3.18-1.59 |
| Manufacturers Catalog Number | GIPI 3.18-1.59 |
| Series Number | Cut Grip |
| Material | Carbide |
| Overall Length (mm) | 15.70 |
| Insert Style | GIPI |
| Series | Cut Grip |
| Series | Cut Grip |
| Material | Carbide |
| Manufacturer's Grade | IC8250 |
| Insert Style | GIPI |
| Insert Size | 318159 |
| Insert Holding Method | Self Grip |
| Corner Radius (Inch) | 0.0630 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Single/DoubleEnd | Double |
| MultiUseTool | Yes |
