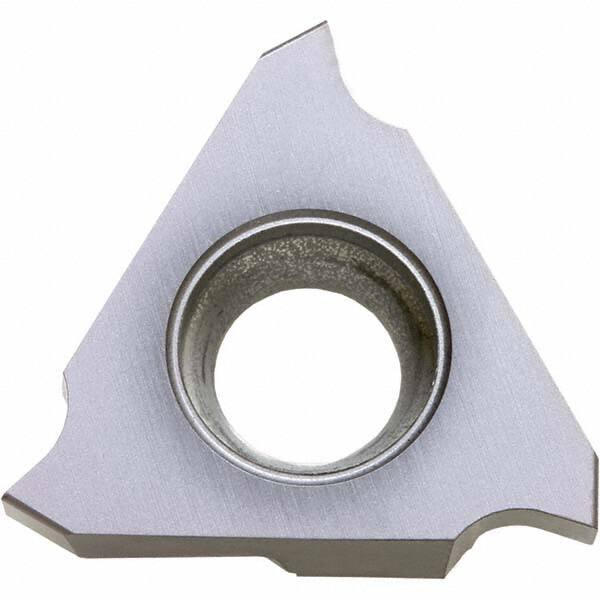

Kyocera - GBA32 Grade PR1625, 2mm Cutting Width Carbide Grooving Insert
Item #: 10629905
Brand: Kyocera
Model #: 8860628
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Manufacturer's Grade | PR1625 |
| Coating | Megacoat Nano |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 3.18 |
| Multi-Use Application | External Grooving |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Coating Process | PVD |
| Series | GBA |
| Rake | Positive |
| ISO Number | GBA32R200-020 |
| Manufacturers Catalog Number | GBA32R200020 PR1625 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Thickness (mm) | 3.1800 |
| Insert Holding Method | Screw or Clamp |
