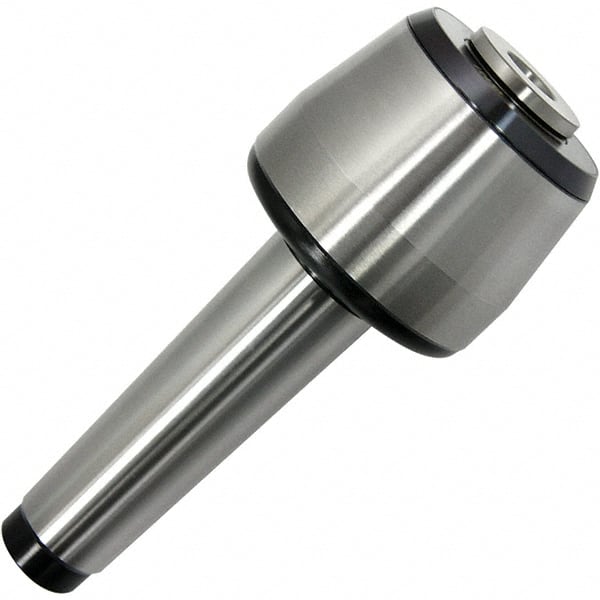

Accupro - Live Centers Shank Type: Morse Taper Taper Size: MT4
Item #: 99454209
Brand: Accupro
Model #:
Product Specifications
Live Centers; Shank Type: Morse Taper ; Taper Size: MT4 ; Maximum Workpiece Weight (Lb.): 551.16 ; Maximum Workpiece Weight (kg): 250.00 ; Point Style: Interchangeable ; Point Diameter (mm): 28.00
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 551.16 |
| Maximum Workpiece Weight (kg) | 250.00 |
| Point Style | Interchangeable |
| Point Diameter (mm) | 28.00 |
| Point Length (mm) | 61.50 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 551.20 |
| Head Diameter (mm) | 69.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Shank Length (Decimal Inch) | 4.2520 |
| Overall Length (mm) | 191.50 |
| Point to Gauge Line (mm) | 91.50 |
| Included Angle | 60.00 |
| Maximum RPM | 3800 |
| Carbide-Tipped | No |
