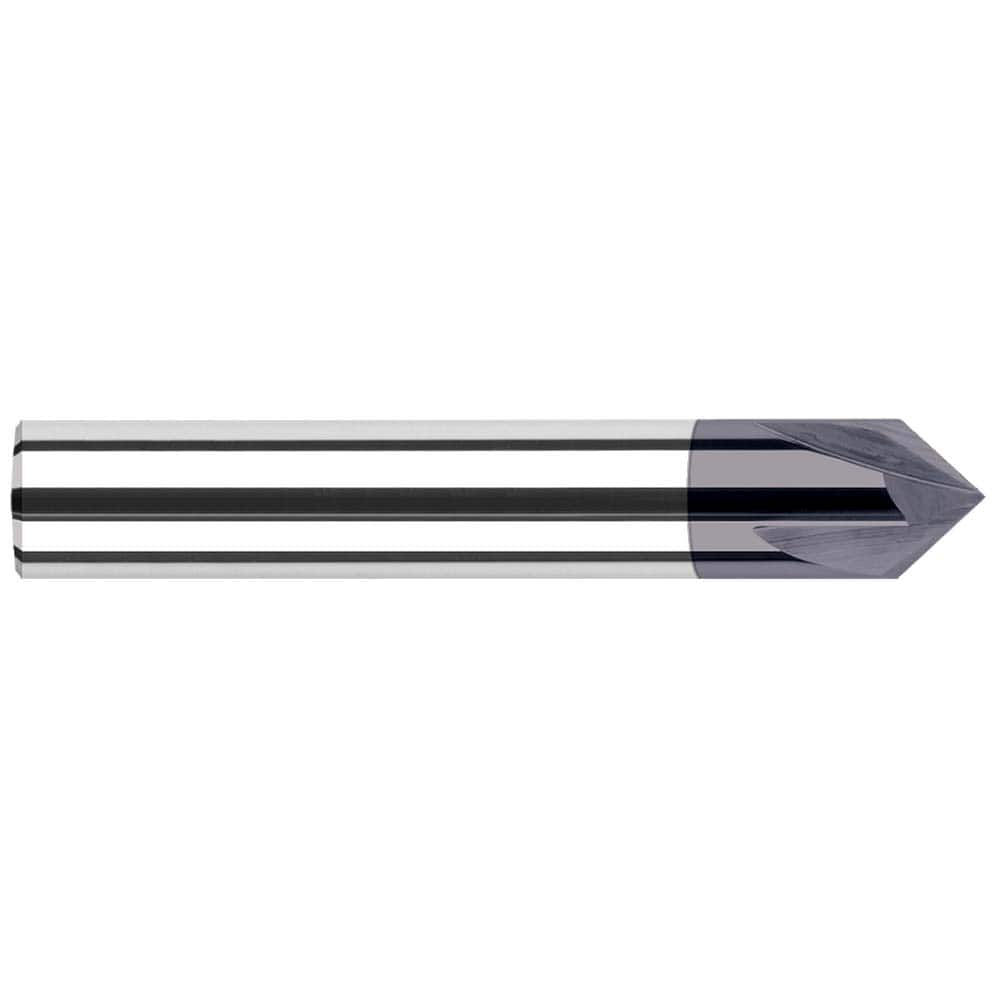

Harvey Tool - 2 Flute Chamfer Mill
Item #: 86015278
Brand: Harvey Tool
Model #: 18715-C3
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Product Specifications | |
---|---|
Cutter Head Diameter (Inch) | 1/8 |
Included Angle B | 150 |
Included Angle A | 30 |
Chamfer Mill Material | Solid Carbide |
Chamfer Mill Finish/Coating | AlTiN |
Overall Length (Inch) | 1-1/2 |
Shank Diameter (Inch) | 1/8 |
Number of Flutes | 2 |
End Type | Single |
Length of Cut (Decimal Inch) | 0.2150 |
Cutting Direction | Right Hand |
Shank Diameter (Decimal Inch) | 1/8 |
Overall Length (Decimal Inch) | 1-1/2 |
Series/List | Chamfer Cutters - Pointed & Flat End |
