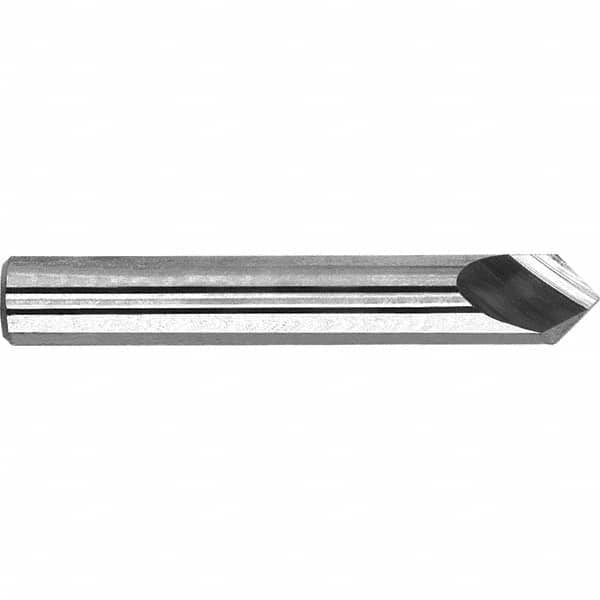

Melin Tool - 1/2" Diam 2 Flute Single End Solid Carbide Chamfer Mill
Item #: 57794653
Brand: Melin Tool
Model #: 16283
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 1/2 |
| Included Angle A | 60 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | Bright |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 2 |
| End Type | Single |
| Length of Cut (Inch) | 7/16 |
| Length of Cut (Decimal Inch) | 0.4375 |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering |
| Material Application | Alloys; Cast Iron; Non-Ferrous Metals; Stainless Steel; Steel |
| Storage Unit Type | None |
| Cutter Head Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Series/List | CMG2 |
