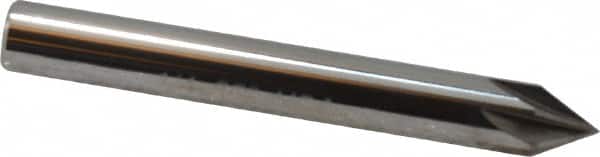

Keo - 1/4" Head Diam, 1/4" Shank Diam, 6 Flute 60° Solid Carbide Countersink
Item #: 44839652
Brand: Keo
Model #: 55782
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 6.35 |
| Head Diameter (Inch) | 1/4 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 6 |
| Included Angle | 60 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Bright |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Maximum Cutting Diameter (Inch) | 1/4 |
| Overall Length (mm) | 51 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Countersink Application | Chamfering; Countersinking; Deburring |
| End Type | Single |
| PSC Code | 5133 |
