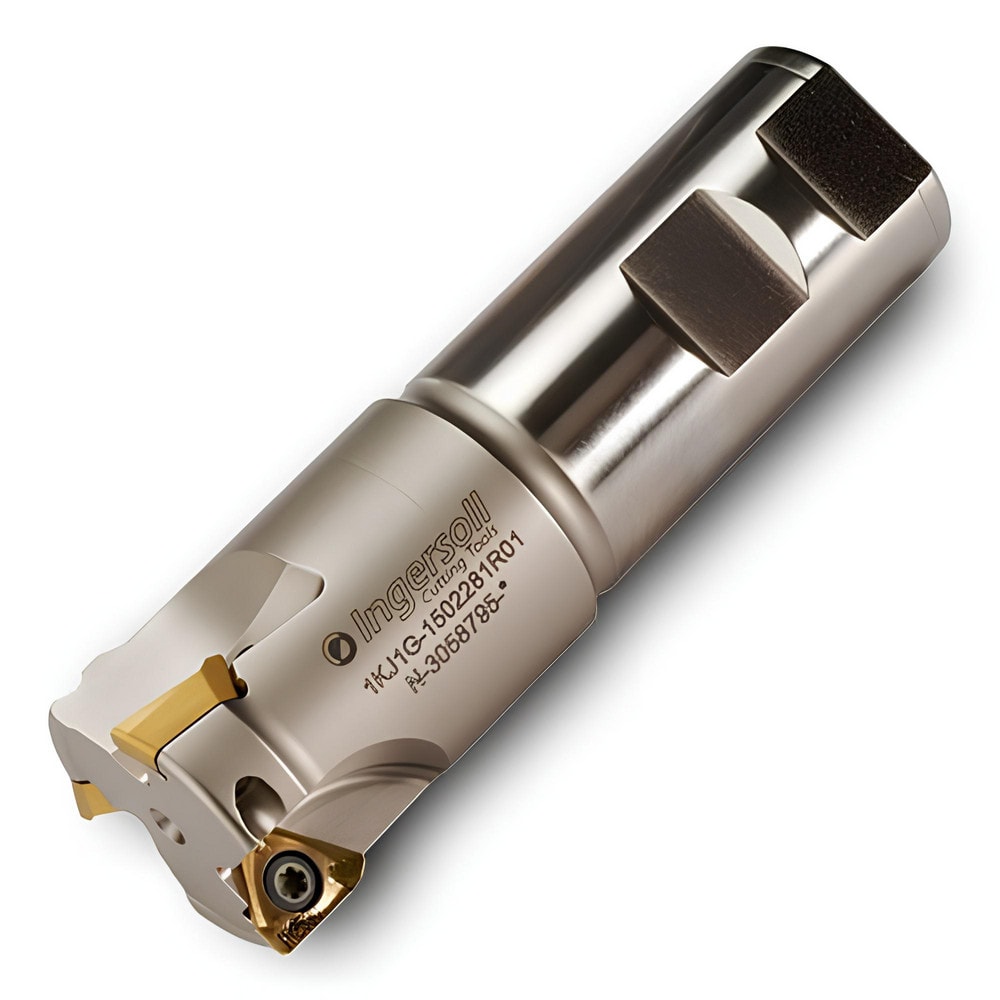

Indexable Square-Shoulder End Mill: 1KJ1G-2002281R01, 11 mm Max Depth of Cut, 1-1/4" Dia Weldon Flat Shank
Item #: 44719888
Brand: Ingersoll Cutting Tools
Model #: 3031405
Product Specifications
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Cutter Style | 1KJ1G |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 1.5 |
| Tool Material | Steel |
| Series | 1KJ1G |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Inch) | 2-1/4 |
| Head Length (Decimal Inch) | 2.25 |
| Tool Application | Facing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Positive |
| Complete Insert Compatibility | THxS1005.. |
| Insert Compatibility | THxS1005.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | 1KJ1G-2002281R01 |
| Usable Length (mm) | 57.15 |
| Number Of Flutes | 5 |
| Usable Length (Decimal Inch) | 2.2500 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
