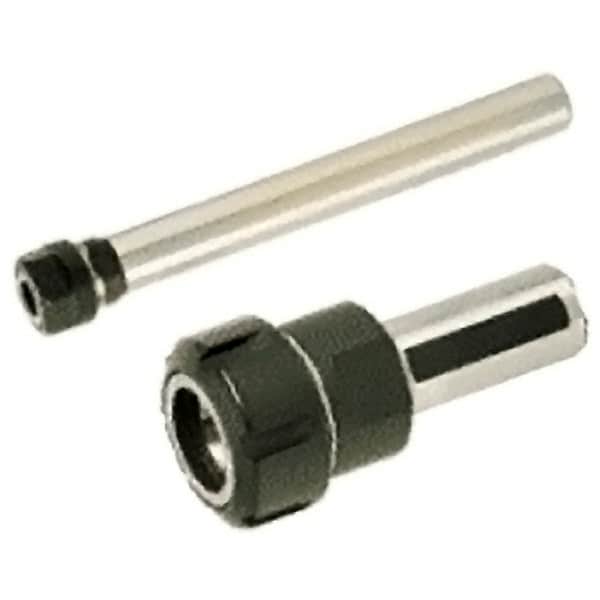

Iscar - 10mm to 34mm Capacity, 77mm Projection, Straight Shank, ER50 Collet Chuck - 157mm OAL, 50mm Shank Diam
Item #: 57768269
Brand: Iscar
Model #: 4508011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER50 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Projection (mm) | 77.00 |
| Projection (Decimal Inch) | 3.0315 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.3937 |
| Minimum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (mm) | 34.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.3386 |
| Overall Length (mm) | 157.00 |
| Overall Length (Decimal Inch) | 6.1811 |
| Actuator Type | Wrench |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Nose Diameter (mm) | 78.00 |
| Nose Diameter (Decimal Inch) | 3.0709 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle |
