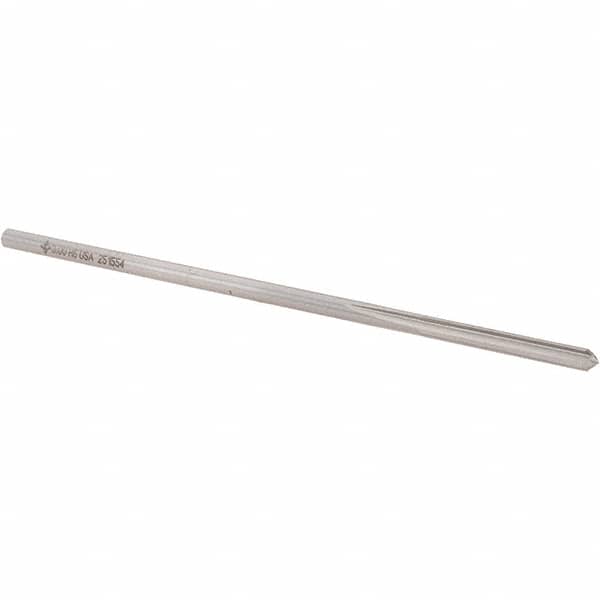

Cleveland - 3mm High Speed Steel 4 Flute Chucking Reamer - Straight Flute, Straight Shank, 22.23mm Flute Length, 88.9mm OAL
Item #: 57638132
Brand: Cleveland
Model #: C25185
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 3.00 |
| Reamer Diameter (Decimal Inch) | 0.1181 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Length (mm) | 22.23 |
| Flute Length (Decimal Inch) | 0.8750 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 4 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0004 |
