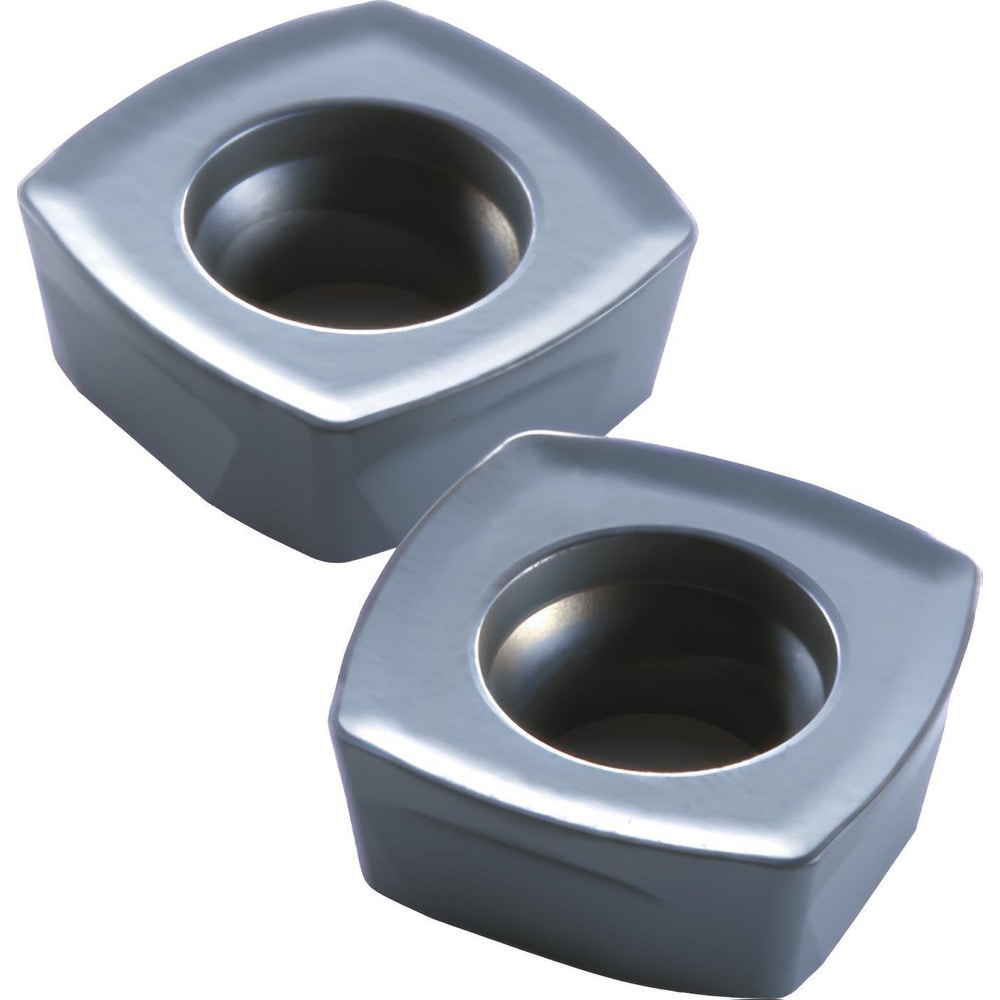

Milling Insert: SDMT09T308SR-GM XP2025, Solid Carbide
Item #: 33626862
Brand: OSG
Model #: 7826020
Product Specifications
| Insert Style | SDMT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | XP2025 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiALN |
| Relief Angle | 15.00 |
| Insert Size Code | 09T308 |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0748 |
| Series | 78PHC |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | SDMT09T308SR-GM |
| Iso Code | SDMT09T308SR-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7826020 |
| Cutter Series Compatibility | 78PHC |
| Chip Breaker | GM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3748 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3748 |
