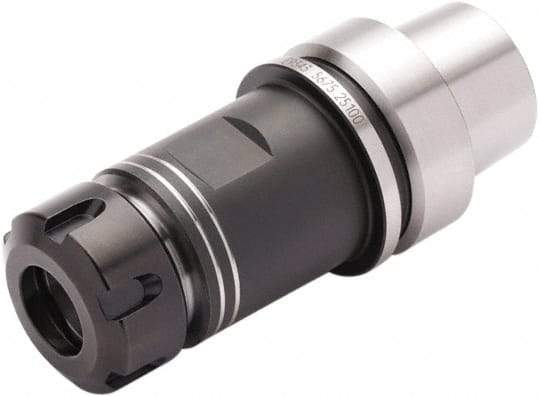

Seco - 0.039" to 0.63" Capacity, 3.937" Projection, HSK50E Hollow Taper, ER25 Collet Chuck - 4.921" OAL
Item #: 57488538
Brand: Seco
Model #: 66075
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Hollow Taper |
| Taper Size | HSK50E |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 4.9210 |
| Nose Diameter (Decimal Inch) | 1.6540 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
