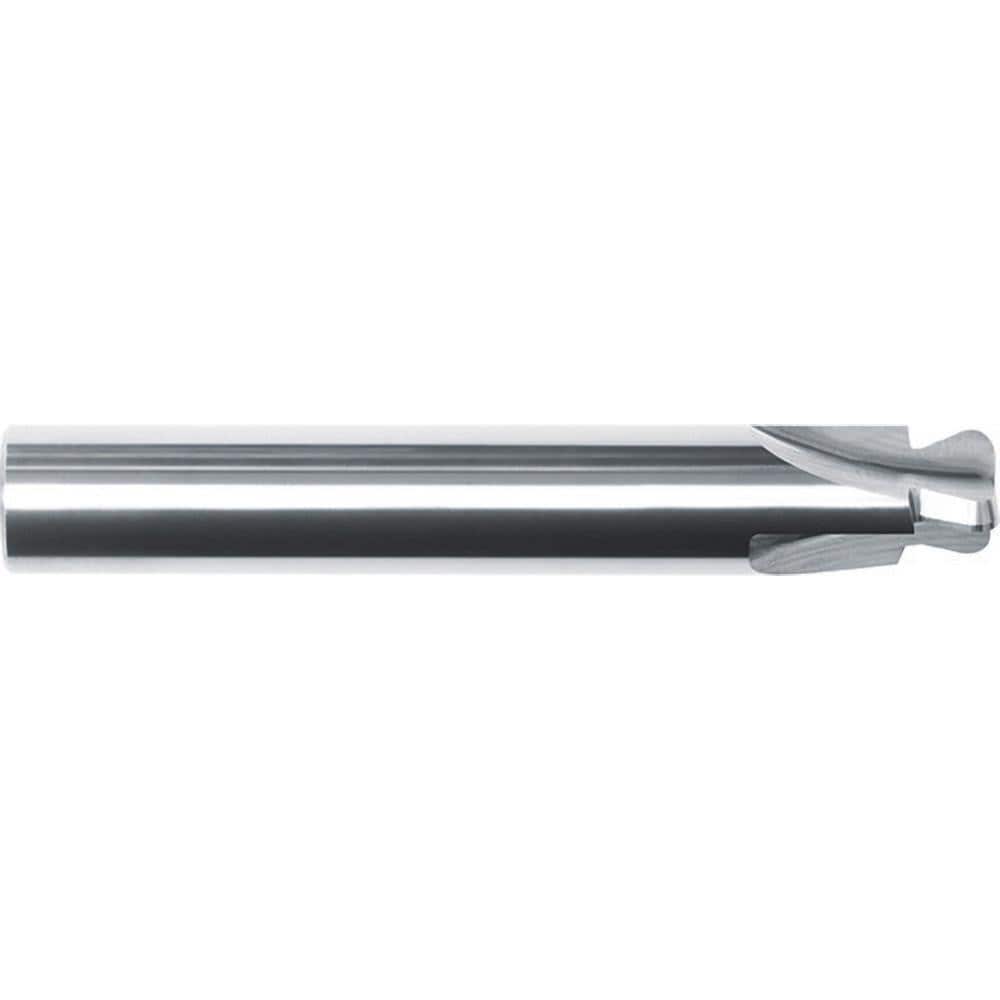

Dovetail Cutters; Included Angle: 48; Cutter Diameter (Decimal Inch): 0.1260; Cutting Width (Decimal Inch): 0.0750
Item #: 55164958
Brand: Internal Tool
Model #: 51-8005
Product Specifications
| Included Angle | 48 |
| Cutter Diameter (Decimal Inch) | 0.1260 |
| Cutting Width (Decimal Inch) | 0.0750 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 3/16 |
| Minimum Cutter Diameter (Decimal Inch) | 0.0860 |
| Coating/Finish | Uncoated |
| Shank Length (Inch) | 2-1/2 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 51 |
| Maximum Cutter Diameter (Decimal Inch) | 0.1260 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Length (Decimal Inch) | 2.5000 |
| UNSPSC Code | 23241632 |
| Included Angle | 48 |
| Cutter Diameter (Decimal Inch) | 0.1260 |
| Cutting Width (Decimal Inch) | 0.0750 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 3/16 |
| Minimum Cutter Diameter (Decimal Inch) | 0.0860 |
| Coating/Finish | Uncoated |
| Shank Length (Inch) | 2-1/2 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 51 |
| Maximum Cutter Diameter (Decimal Inch) | 0.1260 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Length (Decimal Inch) | 2.5000 |
| UNSPSC Code | 23241632 |
| MSC Part # | 55164958 |
| Mfr Part # | 51-8005 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
