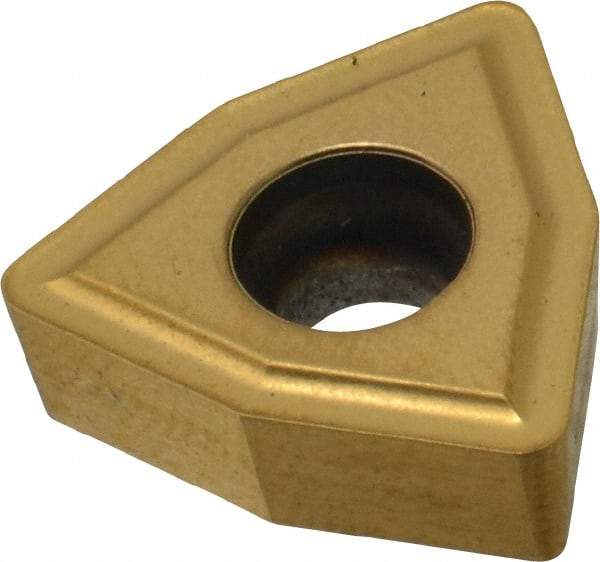

Seco - WCMX080412 86 Grade T400D Carbide Indexable Drill Insert - TiAlN/TiN Finish, Trigon, 12.7mm Inscribed Circle
Item #: 57274086
Brand: Seco
Model #: 24140
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 080412 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | T400D |
| Inscribed Circle (mm) | 12.70 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.20 |
| Shape | Trigon |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Chipbreaker | 86 |
