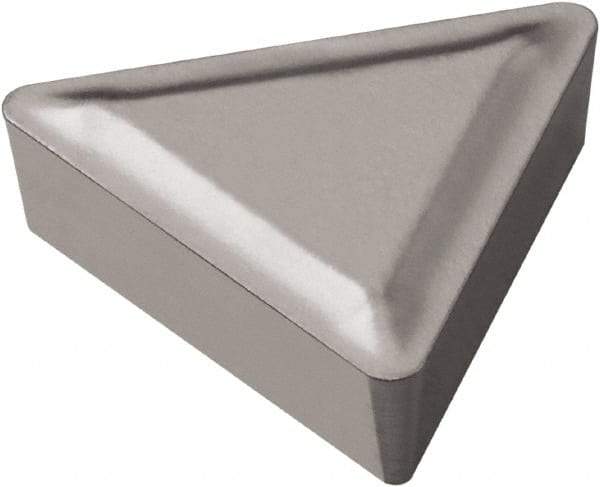

Sandvik Coromant - TCGR1.211 53 Grade 5015 Cermet Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 1/16" Thick, 1/64" Corner Radius
Item #: 57223786
Brand: Sandvik Coromant
Model #: 5751749
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGR |
| Insert Size | 1.211 |
| Material | Cermet |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Thickness (mm) | 1.59 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | 53 |
| ISO Number | TCGR 06 01 04 5015 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max S |
| Maximum Depth of Cut (mm) | 6.22 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Sharp |
| Shape | Triangle |
