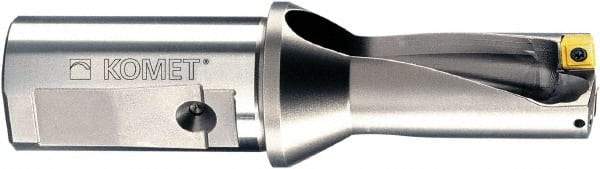

Komet - 72mm Max Drill Depth, 3xD, 24mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Straight Shank
Item #: 57216947
Brand: Komet
Model #: U1182400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (mm) | 24.00 |
| Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 72.00 |
| Maximum Drill Depth (Decimal Inch) | 2.8346 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Diameter (mm) | 24.50 |
| Overall Length/Projection (mm) | 156.00 |
| Overall Length/Projection (Decimal Inch) | 6.1417 |
| Insert Compatibility | SOEX 07T308 |
| Body Length (Decimal Inch) | 3.7795 |
| Body Length (mm) | 96.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | KUB Quatron |
