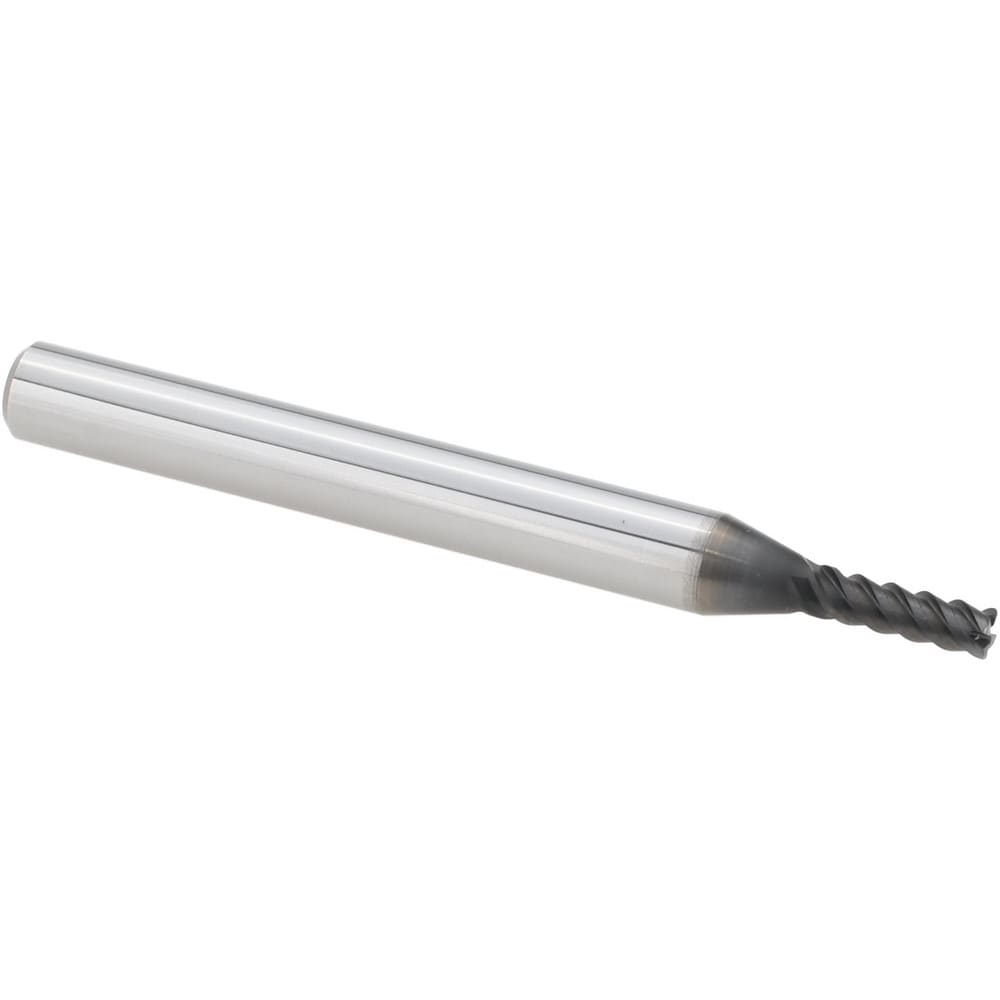

Corner Radius End Mill: 1/8" Dia, 3/8" LOC, 0.0100" Radius, 4 Flute, Solid Carbide
Item #: 35336957
Brand: OSG
Model #: 44450001
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.25 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Cr |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Corner Radius Tolerance | +0.0002 to -0.0002 in |
| Mill Diameter Tolerance | +0.0008/-0.0008 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | 4445 |
| Additional Information | Exocarb-WXL End Mills Are The New Industry Standard for Hard Milling. Everything About WXS Is Designed for Rigidity & Performance In Hardened Steel 50 Hrc & Greater. SubstratesGeometry& Proprietary WXS Coating Are All Specifically Tailored for Hardened Steels Like D2A2S7H13 & CPM |
| Material Application | Cast Iron; Steel; Hardened Steel |
| Coating Classification | PVD |
| Proprietary Coating Designation | WXL |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | 44450001 |
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.25 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Cr |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Corner Radius Tolerance | +0.0002 to -0.0002 in |
| Mill Diameter Tolerance | +0.0008/-0.0008 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | 4445 |
| Additional Information | Exocarb-WXL End Mills Are The New Industry Standard for Hard Milling. Everything About WXS Is Designed for Rigidity & Performance In Hardened Steel 50 Hrc & Greater. SubstratesGeometry& Proprietary WXS Coating Are All Specifically Tailored for Hardened Steels Like D2A2S7H13 & CPM |
| Material Application | Cast Iron; Steel; Hardened Steel |
| Coating Classification | PVD |
| Proprietary Coating Designation | WXL |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | 44450001 |
| MSC Part # | 35336957 |
| Mfr Part # | 44450001 |
| Country of Origin Country of Origin is subject to change | Japan |
