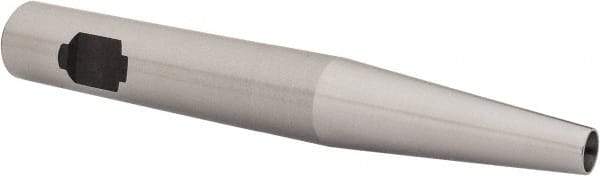

Seco - Minimaster 5/8" 85° Shank Milling Tip Insert Holder & Shank - 0.299" Neck Diam, 4.72" OAL, MM08 Tool Holder
Item #: 57063562
Brand: Seco
Model #: 54602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Shank Type | 85 Degree Shank |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Neck Diameter (Decimal Inch) | 0.2990 |
| Overall Length (Decimal Inch) | 4.7200 |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.8900 |
| Effective Length (Decimal Inch) | 2.8300 |
| Milling Tip Style | MM08 |
| Shank Shape | Conical |
| Toolholder Style | MM08 |
