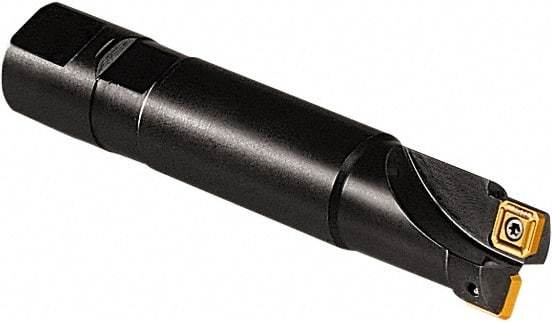

Seco - 0.812" Cut Diam, 0.28" Max Depth of Cut, 3/4" Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle
Item #: 57062887
Brand: Seco
Model #: 54856
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.8120 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8120 |
| Head Length (Decimal Inch) | 1.3800 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 3.3400 |
| Maximum RPM | 26200 |
