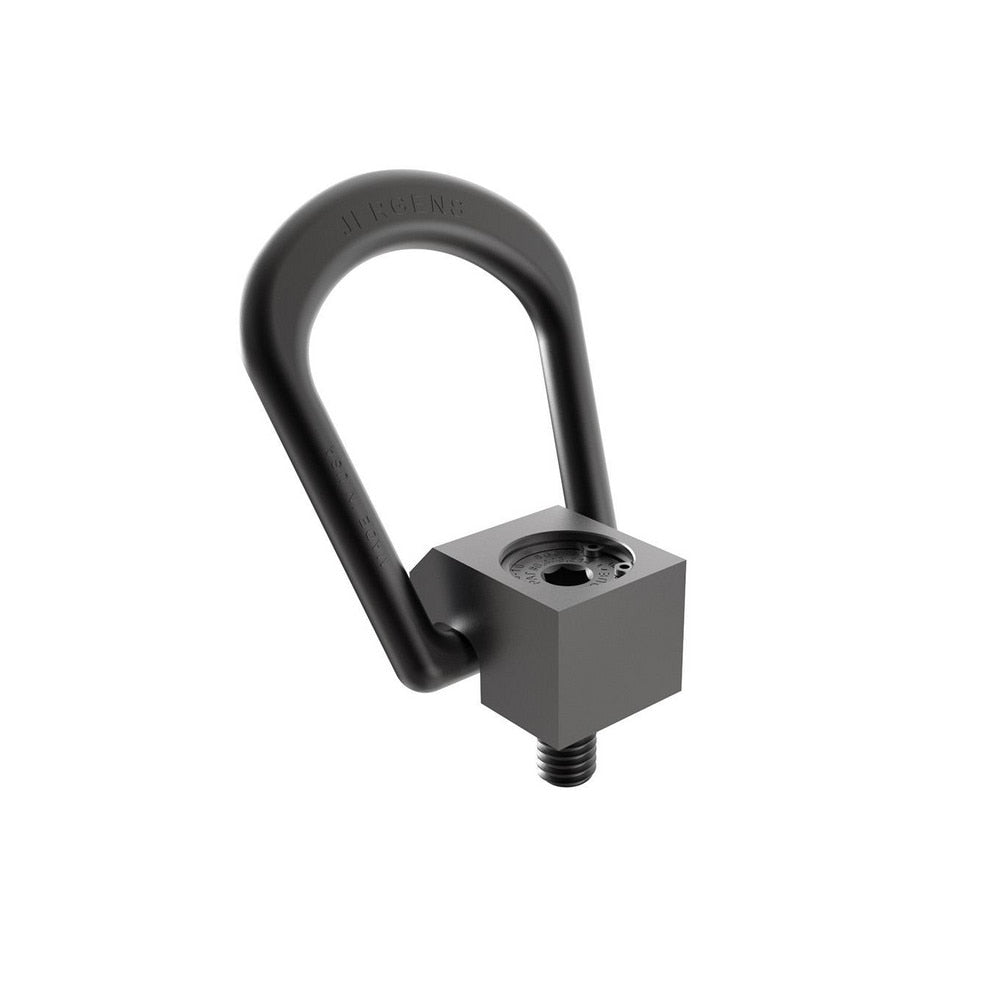

Swivel Hoist Ring: Screw-On, 1800 lb Capacity
Item #: 06557748
Brand: Jergens
Model #: 47802
Product Specifications
| Hoist Ring Type | Swivel |
| Load Capacity (Lbs) | 1800 |
| Thread Size | 1/2-13 |
| Radius (mm) | 38.10 |
| Radius (Decimal Inch) | 1.5000 |
| Thread Length (Inch) | 3/4 |
| Thread Length (Decimal Inch) | 0.7500 |
| Ring Height (mm) | 120.65 |
| Ring Height (Decimal Inch) | 4.7500 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 12.70 |
| Ring Thickness | 0.5000 |
| Overall Length (mm) | 164.3000 |
| Overall Length (Decimal Inch) | 6.4688 |
| Ring External Width (Inch) | 3.0000 |
| Ring External Width (mm) | 76.00 |
| Ring Internal Width (mm) | 50.80 |
| Ring Internal Width (Inch) | 2.0000 |
| Torque | 20.337 |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Screw-On |
| Number Of Mounting Holes | 1.000 |
| Standards | ASTM E1444 |
| Ring Opening (Decimal Inch) | 3.25 |
| Flange Diameter (Decimal Inch) | 1 |
| Ring Outside Diameter (Decimal Inch) | 2.0000 |
| Ring Width (mm) | 76.00 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 3 |
| Hex Size (Inch) | 3/8 |
| Ring Width (Decimal Inch) | 3.0000 |
| Mounting Surface Diameter (Decimal Inch) | 0.50 |
| Clevis Height (mm) | 13 |
| Head/Holder Diameter (Fractional Inch) | 1-5/8 |
| Clevis Width (Inch) | 3 |
| Mounting Surface Diameter (mm) | 12.70 |
| Flange Diameter (mm) | 25.40 |
| Clevis Height (Inch) | 1/2 |
| Clevis Width (mm) | 76 |
| Ring Opening (mm) | 82.55 |
