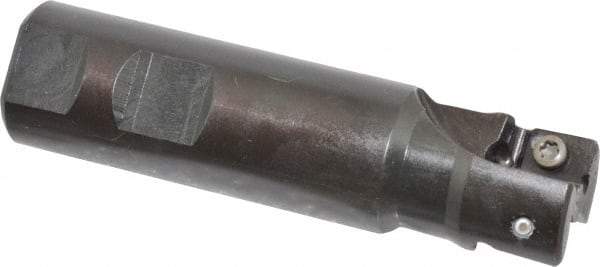

Seco - 1" Cut Diam, 0.59" Max Depth of Cut, 1" Shank Diam, 3.94" OAL, Indexable Square Shoulder End Mill - AP.. 1604 Inserts, Weldon Shank, 90° Lead Angle
Item #: 57044828
Brand: Seco
Model #: 72158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.9400 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-16 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2700 |
| Weldon Flat | Yes |
| Insert Compatibility | AP.. 1604 |
| Shank Length (Decimal Inch) | 2.6700 |
| Maximum RPM | 18400 |
