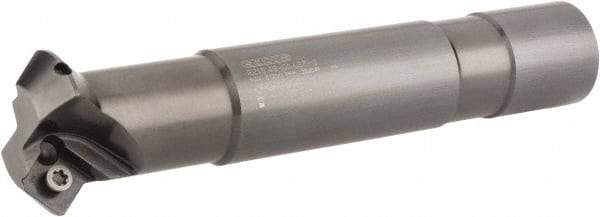

Seco - 45° Lead Angle, 1.55" Max Cut Diam, 1.039" Max Cut Diam, 5/8" Min Cut Diam, 0.2" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 2 Inserts, SPMX 0903.. Insert Style, 4.33" OAL, Straight Shank
Item #: 57042210
Brand: Seco
Model #: 72168
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0390 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Included Angle | 45 |
| Overall Length (Decimal Inch) | 4.3300 |
| Insert Style | SPMX 0903.. |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | R215 |
| Number of Flutes | 2 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.9500 |
| Maximum RPM | 27200 |
| Complete Insert Compatibility | SPMX 090304-75; SPMX 0903AP-75 |
