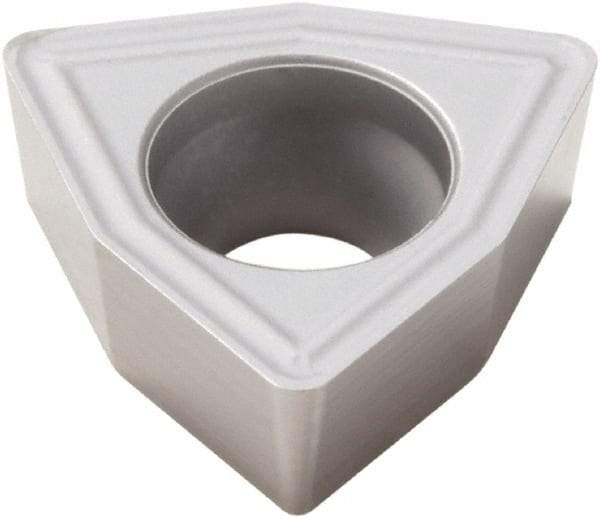

Seco - WCMX03 Grade HX Carbide Indexable Drill Insert - Uncoated, Trigon, 7/32" Inscribed Circle
Item #: 57024002
Brand: Seco
Model #: 15901
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 03 |
| Material | Carbide |
| Manufacturer's Grade | HX |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Shape | Trigon |
| Length (Decimal Inch) | 0.1360 |
| Relief Angle | 7 |
| Coating | Uncoated |
