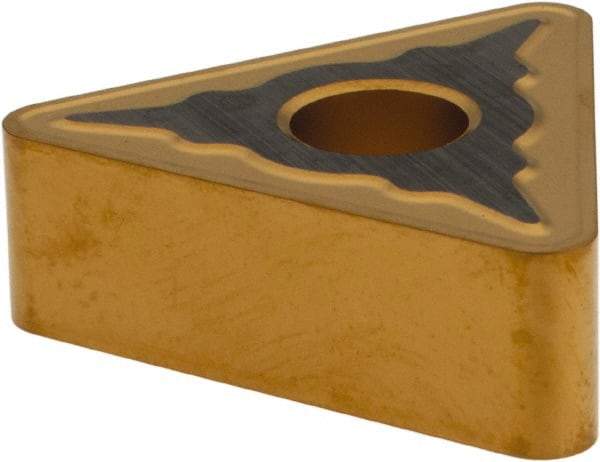

Seco - TNMG666 MR7 Grade TP40 Carbide Turning Insert - TiC/TiCN/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 57015943
Brand: Seco
Model #: 78278
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 666 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | TP40 |
| Coating | TiC/TiCN/TiN |
| Material Grade | C5 |
| Chip Breaker | MR7 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
