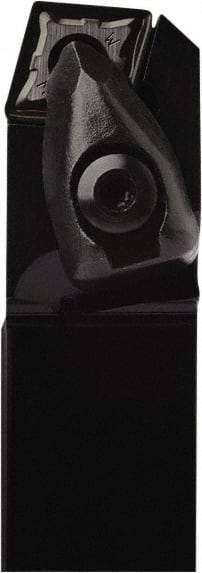

Seco - SNMG644 MR7 Grade TP25 Carbide Turning Insert - 90° Square, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 57001562
Brand: Seco
Model #: 34133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 644 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | TP25 |
| Chip Breaker | MR7 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Relief Angle | 0 |
| Included Angle | 90 |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
