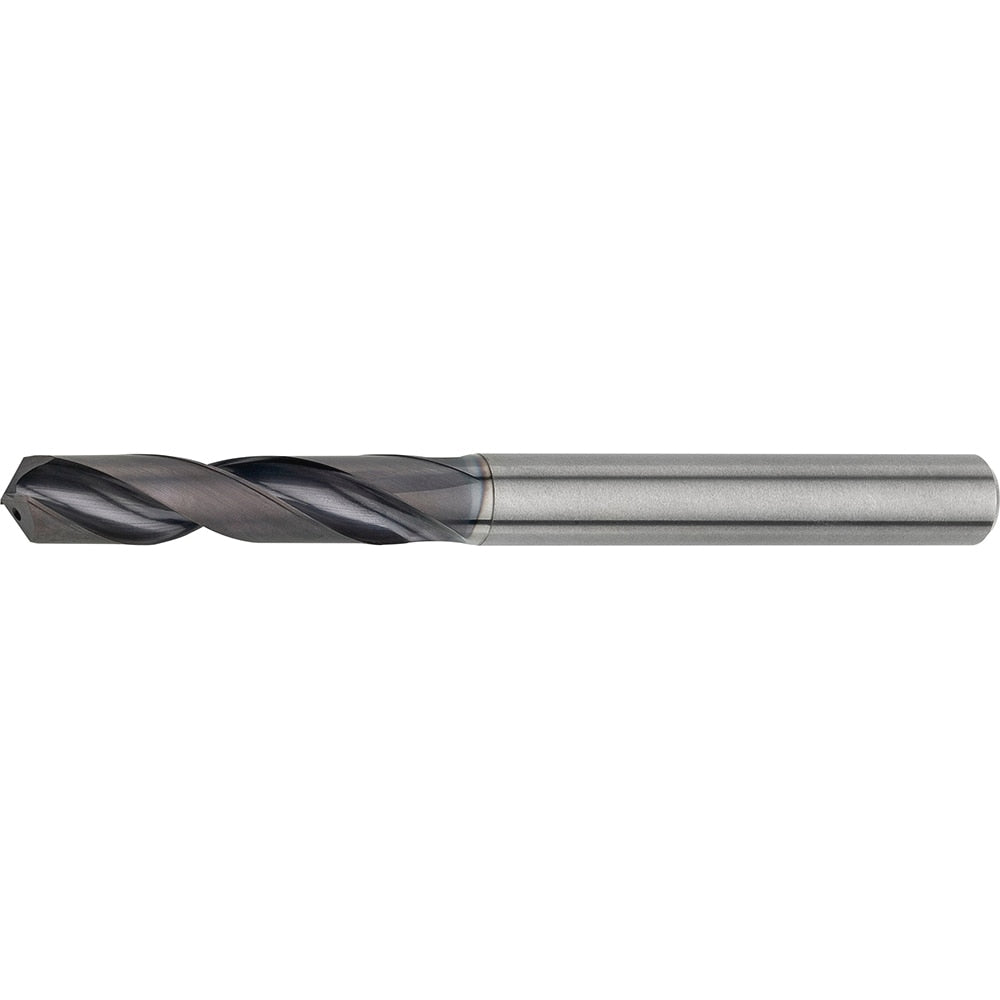

Micro Drill Bit: 1.40 mm Dia, (0.0550"), 140 deg, Solid Carbide
Item #: 00717157
Brand: Mitsubishi
Model #: 459639
Product Specifications
| Drill Bit Size (mm) | 1.40 |
| Drill Bit Size (Decimal Inch) | 0.0550 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.2860 |
| Flute Length (mm) | 7.26 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 1.65 |
| Maximum Drilling Depth (Decimal Inch) | 0.0650 |
| Number Of Flutes | 2 |
| Series | MWS |
| Overall Length (Decimal Inch) | 2.1750 |
| Overall Length (mm) | 55.25 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (Decimal Inch) | 1.7600 |
| Shank Length (mm) | 44.70 |
| Flute By Diameter Ratio | 1xD |
| UNSPSC Code | 23241600 |
