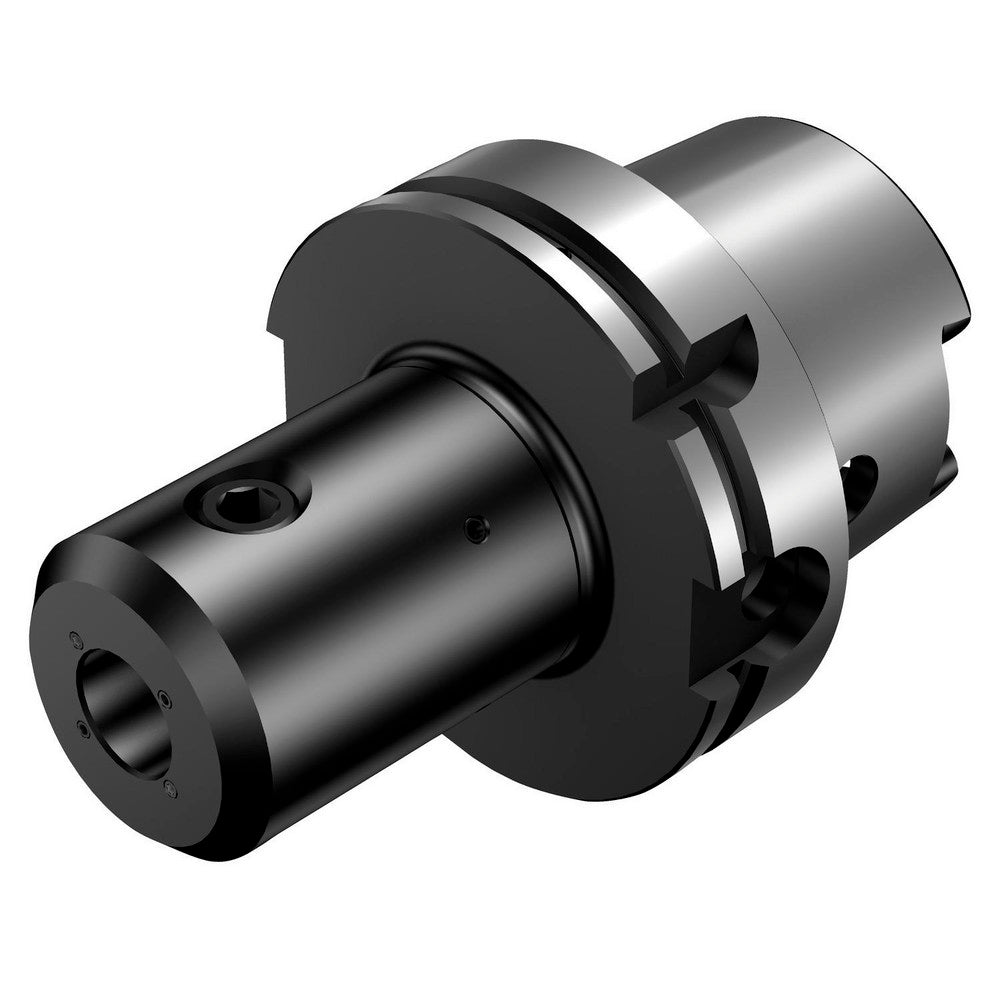

End Mill Holder: HSK100A Taper, Taper Shank, 20.00 mm Hole Dia
Item #: 01778810
Brand: Sandvik Coromant
Model #: 8330597
Product Specifications
| Shank Type | Taper |
| Modular Connection Size | HSK100A |
| Overall Length (mm) | 155 |
| Overall Length (Decimal Inch) | 6.1020 |
| Taper Size | HSK100A |
| Hole Diameter (Mm) ( - 0 Decimals) | 20.00 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6535 |
| Nose Diameter (Mm) ( - 2 Decimals) | 42.00 |
| Projection (Decimal Inch) | 3.9370 |
| Projection (mm) | 100.00 |
| Through Coolant | Yes |
| Machine Side Connection Type | Taper |
| Machine Side Connection Size | 100 mm |
| Tooling Side Connection Type | Weldon |
| Maximum RPM | 12500.000 |
| Includes | Adapter |
| For Use With | Milling Cutter |
| Series | HSK |
| UNSPSC Code | 27112807 |
